Cảm biến áp suất Sensys M5156-10286X-200BG

The size of the PSC model is small enough to be applied to vehicles and heavy machinery. It is also suitable for low pressure measurement and precise measurement. It builds an amplifier to interface with various kinds of controllers.

The size of the PSC model is small enough to be applied to vehicles and heavy machinery. It is also suitable for low pressure measurement and precise measurement. It builds an amplifier to interface with various kinds of controllers.

PCA, PCD designed for high precision measurement and consist of ceramic pressure cell. PCA made of PTFE or PTA, the material of component can be against corrosion, it has no seal inner part. PCD precision pressure cell is surrounded by TEFLON and corrosion-resisting O-ring is airtight. These specification be good at corrosion proof, PCD applies to various control equipment.

The PSH(Flush Diaphragm) model is designed as a flush diaphragm suitable for sanitary use and is high precise for tank levels. Media-wetted materials thereof are composed by stainless steel 316 to have superior corrosion-resistant properties. It is applied to precise measurement and builds an amplifier therein to interface with various kinds of controllers.

Mã số: PSHH0020BIIG. Phạm vi đo: 0 ~ 20bar. Ngõ ra: 4 ~ 20mA. Nối ren: PF3/4". Vật liệu: Inox 316. Độ chính xác: 0.15%FS. Nguồn cấp: 11 ~ 28VDC. Đầu nối điện: loại DIN . Quá áp: 300%FS Trọng lượng: 180g.

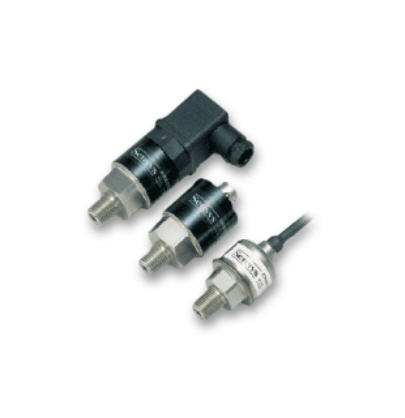

PSG model, the sensing element, is suitable for low pressure measurement below 10kgf/㎠ by applying the piezoresistive cells. It is applied to non-corrosion gas measurement such as the air, LNG, and LPG at a low cost.

Model : PSG Low Pressure Transmitter, Applied for Air Pressure Features Built-in amplifier Circuit(VDC, mA) Measuring range -100~1000kPa 0.5%FS accuracy Piezoresistive silicon cell Use with non-corrosive, non-ionic media

Cảm biến áp suất SMG hiển thị 4 LED Dải áp suất: -90~900kPa Ngõ ra 0-5VDC 4 ngõ ra NPN Pressure port: 1/4" Nhiệt độ hoạt động: -20~80℃ Chịu rung 20G, 20~200Hz Dùng cho môi chất khí
