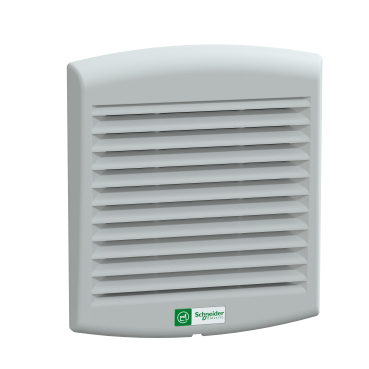

Quạt thông gió 85m3/h 230V IP54 Schneider NSYCVF85M230PF

Ventilateur 85m3/h 230V IP54

Review Sản phẩm

Nhà sản xuất: SCHNEIDER

SKU: NSYCVF85M230PF

Mã hàng (Model): NSYCVF85M230PF

Giá niêm yết: 2.469.500 đ

Giá: 1.595.500 đ

Update Price

Số lượng:

Thông số kỹ thuật

Main
Range	ClimaSys
Product name	ClimaSys CV
Product or component type	Fan
Type of filter	Standard
Flow rate	Free flow rate with standard filter: 85 m3/h at 50 Hz Free flow rate with standard filter: 98 m3/h at 60 Hz
[Us] rated supply voltage	175...253 V
Input voltage	230 V 50/60 Hz

Complementary
Absorbed power	15 W 60 Hz 17 W 50 Hz
[In] rated current	0.121 A 50 Hz 0.097 A 60 Hz
Noise level < at	46…49 dB
Bearing type	Ball
Height	170 mm external:
Width	150 mm external:
Depth	62 mm external:
Cut-out dimensions	125 x 125 mm
Product weight	0.78 kg
Material	Outlet grille: injected thermoplastic (ASA PC)
Colour	Outlet grille: grey (RAL 7035)
Ambient air temperature for operation	-20…60 °C
Ambient air temperature for storage	-40…70 °C
Maximum pressure	50 Pa flow rate 0 m³/h
Connections - terminals	Faston connector
IP degree of protection	IP54
Device composition	1 axial motor 2 protective grille: on the front and rear surfaces 1 filter: front of axial motor 1 outlet grille: front 1 cut-out template 1 power cord
Condition of use	Flow rates depends on the work point, see ProClima software Surrounding environment must be relatively clean Filter must be cleaned and replaced regularly Overfrequent filter replacement should be avoided Outside temperature must be 5 °C lower than inside temperature

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	7.874 cm
Package 1 Width	16.002 cm
Package 1 Length	16.002 cm
Package 1 Weight	839.154 g
Unit Type of Package 2	CAR
Number of Units in Package 2	10
Package 2 Height	43 cm
Package 2 Width	33 cm
Package 2 Length	21 cm
Package 2 Weight	9.526 kg
Unit Type of Package 3	P12
Number of Units in Package 3	240
Package 3 Height	95 cm
Package 3 Width	80 cm
Package 3 Length	120 cm
Package 3 Weight	241 kg
