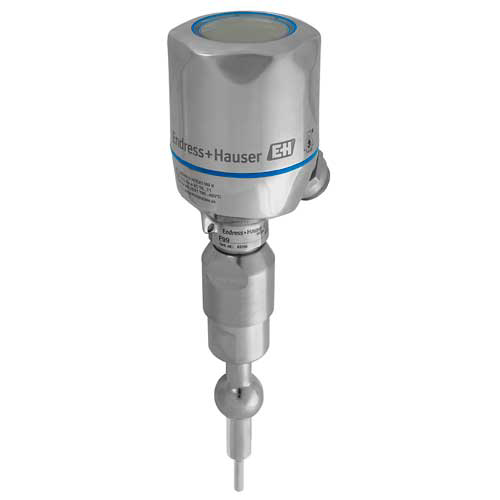

Nhiệt kế RTD mô-đun dòng cải tiến iTHERM TM411 Endress+Hauser TM411-AA1AB1B4CB1C1X30Q1A000A2C1B13CR4A1A1+C1

Mã hàng : TM411-AA1AB1B4CB1C1X30Q1A000A2C1B13CR4A1A1+C1
Loại: Nhiệt kế RTD mô-đun dòng cải tiến iTHERM TM411
Hãng sản xuất: Endress+Hauser

Nhà sản xuất: Endress + Hauser

SKU: TM411-AA1AB1B4CB1C1X30Q1A000A2C1B13CR4A1A1+C1

Mã hàng (Model): TM411-AA1AB1B4CB1C1X30Q1A000A2C1B13CR4A1A1+C1

40.138.273 đ

Số lượng:

Approval:	AA	Non-hazardous area	-	-
Thermowell:	1	With weld-in adapter	-	-
Material Wetted Parts:	A	316L	-	-
Process Connection Type:	B1	Weld-in adapter	-	-
Process Connection Size:	B4	Weld-in adapter spherical-cylindrical D 30x40mm, 3-A, EHEDG, ASME BPE	-	-
Thermowell External Diameter D1:	C	9 mm	-	-
Tip Shape; External Diam. D2; Length Re:	B1	Straight (D1 = D2)	-	-
Surface Wetted Parts:	C1	Ra <= 0.76 (D1=9 mm)	-	-
Immersion Length U:	X30	..... mm (9/12.7mm TW)	-	-
Neck:	Q1	iTHERM QuickNeck neck separable - quick release	-	-
Neck Length E:	A0	Not needed	-	-
Lagging Length T:	00	Predefined (not selectable)	-	-
Sensor Type; Measuring Range:	A2	1xPt100 TF, StrongSens vibration resistant up to 60g; -50...+500oC	-	-
Insert Design; Diam. d; Sheath Material:	C1	3-wire MI-cable; 6mm; 316L	-	-
Accuracy acc. IEC60751:	B1	Class A (StrongSens, 6mm)	-	-
Electrical Connection:	3C	4-20mA HART, 2-channel TMT82, head transmitter DIN B	-	-
Terminal Head,Material,Protection Class:	R4	TA30R + display, 316L polished, IP66/68, NEMA Type 4	-	-
Neck Connection Terminal Head:	A1	M24x1.5 female thread	-	-
Cable Entry Terminal Head:	A1	1x M20x1.5 female thread	-	-
>Cable Gland:	C1	1x polyamide; -40...+100oC; IP68	-	-
