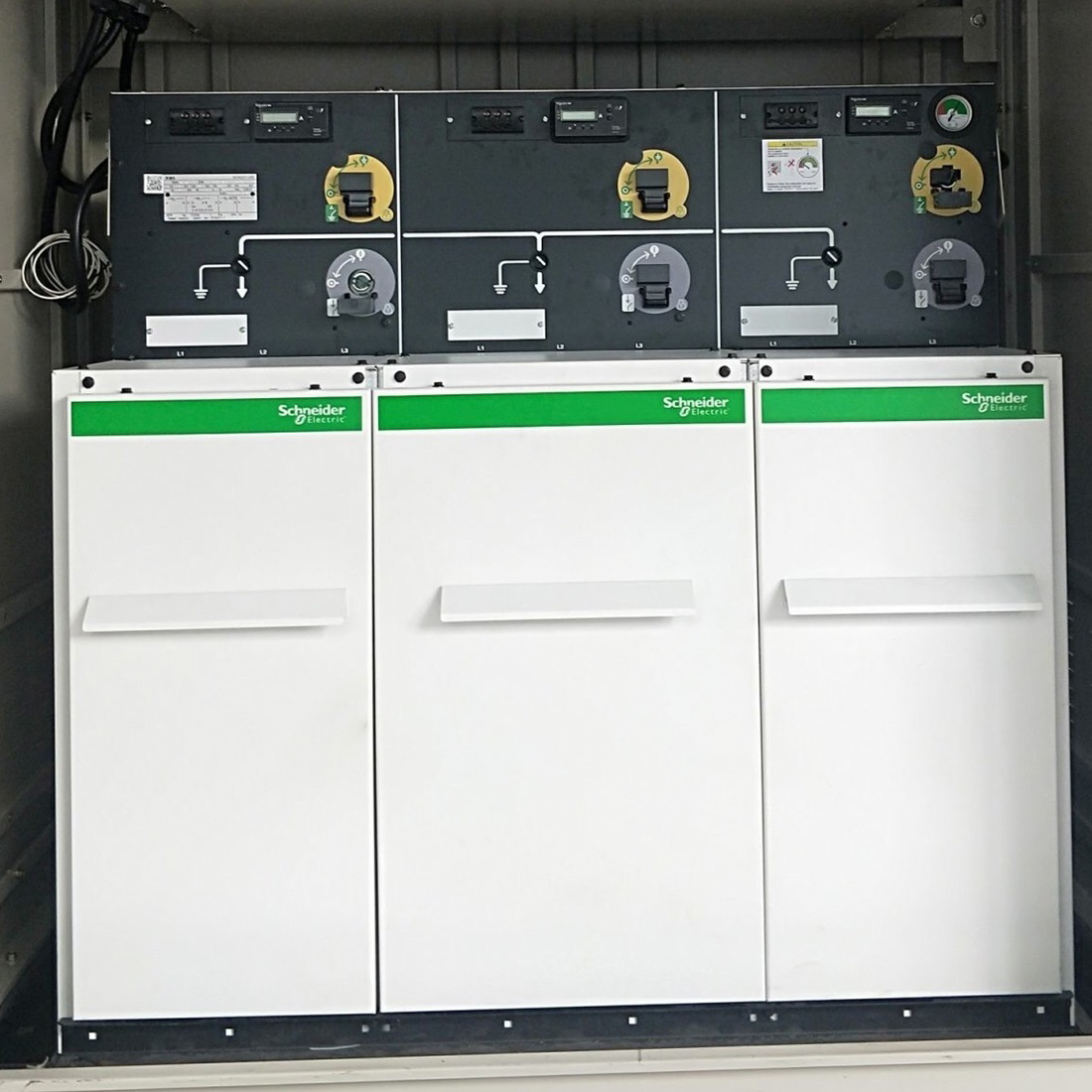

Tủ điện MV Compact Schneider-RMU 24KV-(RM6-IQI)

Nhà sản xuất: SCHNEIDER

SKU: RM6-NE-IQI

Mã hàng (Model): RM6-NE-IQI

Giá niêm yết: 295.000.000 đ

Giá: 100 đ

Số lượng:

Compact self-contained totally insulated switchgear

choice of transformer feeder protection : circuit breaker with self powered protection-unit or switch disconnector combination combined with fuses.

Option:

1 - Sơ đố chức năng ký hiệu tủ RM6

2 - Đặc tính kỹ thụât tủ RMU IQI

3 - Thông số kỹ thuật

4 - Kích thước tủ RM6

Network	Three phases - Three wires
Rated Voltage	12 - 17,5 - 24 kV
Service Voltage	.. kV
System Frequency	50/60 Hz
Lightning Impulse withstand Voltage Phase to phase, phase to earth Across the isolating distance	95 - 125 kV 110 - 145 kV
Power Frequency withstand voltage	28 - 38 - 50 kV rms - 1 mn
Rated Normal Current Line switch Transformer feeder Branch circuit breaker feeder	400/630 A 200 A 630 A
Rated Short time current withstand ( 1 sec )	12,5 - 16 - 20 - 25 kA
Rated Short circuit making capacity of line switches and earthing switches	31,5 - 40 - 50 - 62,5 kA peak at Rated Voltage
Number of operations at rated short circuit current on line switches, earthing switches and CB	5 closing operations
Rated load interrupting current Line switch	400 - 630 A rms
Rated cable charging interrupting current Line switch	30 A
Rated magnetizing interrupting current Line switch	16 A
Number of mechanical operations Line switches and earthing switches Switch-fuse combination Circuit breaker	1000 O/C 1000 O/C 2000 O/C
Number of electrical operations at full loop current	100 O/C
Number of operations at rated short circuit current on circuit breaker	3 breaking operations
