Liquistation CSF48

Automatic stationary sampler for liquid media Integrated multiparameter controller with two measuring channels and optional digital Memosens technology

Review Sản phẩm

SKU: Liquistation CSF48

Mã hàng (Model): Liquistation CSF48

100 đ

Số lượng:

Product name: Liquistation CSF48

Application

Liquistation CSF48 is a stationary sampler designed for the fully automated sampling, defined distribution, and temperature-controlled storage of liquid media. The standard product version has two 0/4 to 20 mA analog inputs, two binary inputs and two binary outputs. Thanks to the modular platform concept, the sampler can be quickly and easily modified to create a measuring station. The sampler is designed for use in the following applications:

Municipal and industrial sewage treatment plants
Laboratories and Water Conservancy Boards
Monitoring of liquid media in industrial processes

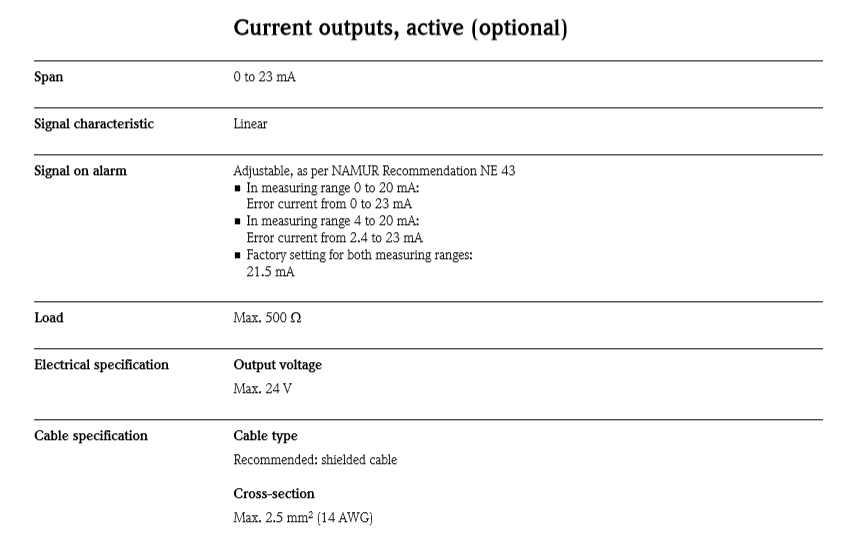

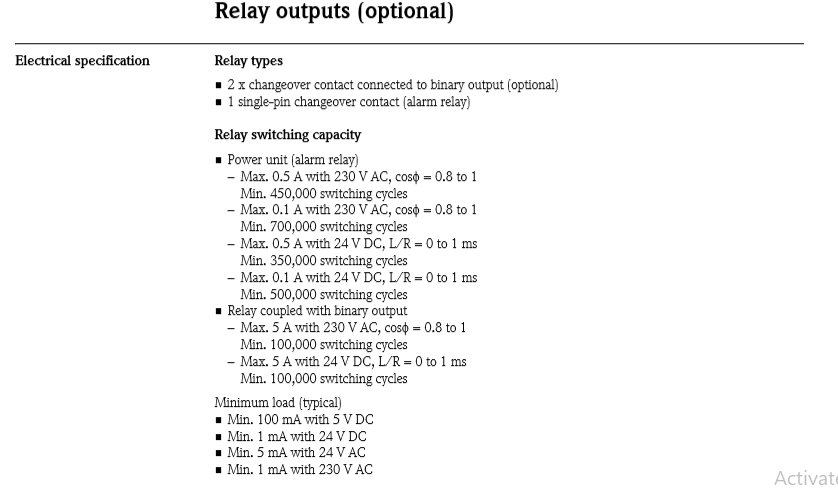

Depending on the version ordered, one or two digital sensors with Memosens technology can be connected to the CSF48. Furthermore, two 0/4 to 20 mA analog outputs are available, as well as a cleaning function and an alarm relay.

Your benefits

Rugged and reliable:
- Four different kinds of housing material
- Two-door housing for reliable sample temperature regulation
- Optimal air circulation in both the upper and lower enclosure
Simple and easy to use:
- Swift menu guidance, navigator and large display
- Two bottle trays for easy sample transportation
- Parts carrying medium are easy to disassemble, making cleaning and maintenance simple
Flexible: Communicative:
Integrated data logger for recording measured values
Service interface for data transmission
- User friendly programs ranging from simple time programs to event programs
- Functionality can be extended by installing modular electronic components
- Sample can be supplied from the side or from below
Safe:
- Optional battery backup system ensures uninterrupted operation in the event of power failure
- Touch-safe low-voltage supply for electronic components
